my commissioning failed,which logs supplyed can help me here?

Tutorials
1

my MAAS 3.6 via snap,intalled at below server
Ubuntu 24,two nic 192.168.204.16/24 public,10.10.204.16/16 for bmc
when I commissioning a server,pxe seems failed,dhcp seems ok,but I can not further locate this issue
which logs shoud check and supply?

Jun 04 08:39:31 u24maas maas-rackd[5541]: provisioningserver.rackdservices.tftp: [info] lpxelinux.0 requested by 192.168.204.173
Jun 04 08:39:31 u24maas maas-rackd[5541]: provisioningserver.rackdservices.http: [info] /images/lpxelinux.0 requested by 127.0.0.1
Jun 04 08:39:39 u24maas maas-rackd[5541]: provisioningserver.rackdservices.tftp: [info] lpxelinux.0 requested by 192.168.204.173
Jun 04 08:39:39 u24maas maas-rackd[5541]: provisioningserver.rackdservices.http: [info] /images/lpxelinux.0 requested by 127.0.0.1
Jun 04 08:40:14 u24maas maas-rackd[5541]: provisioningserver.utils.services: [info] Beaconing process for enp0s3 started.
Jun 04 08:40:14 u24maas maas-rackd[5541]: provisioningserver.utils.services: [info] Beaconing process for enp0s8 started.
Jun 04 08:40:15 u24maas maas-rackd[5541]: provisioningserver.utils.services: [critical] Beaconing process for enp0s8 failed.
Jun 04 08:40:15 u24maas maas-rackd[5541]:         Traceback (most recent call last):
Jun 04 08:40:15 u24maas maas-rackd[5541]:         Failure: twisted.internet.error.ProcessTerminated: A process has ended with a probable error condition: process ended with exit code 3.
Jun 04 08:40:15 u24maas maas-rackd[5541]:
Jun 04 08:40:15 u24maas maas-rackd[5541]: provisioningserver.utils.services: [critical] Beaconing process for enp0s3 failed.
Jun 04 08:40:15 u24maas maas-rackd[5541]:         Traceback (most recent call last):
Jun 04 08:40:15 u24maas maas-rackd[5541]:         Failure: twisted.internet.error.ProcessTerminated: A process has ended with a probable error condition: process ended with exit code 3.
Jun 04 08:40:15 u24maas maas-rackd[5541]:
Jun 04 08:41:14 u24maas maas-rackd[5541]: provisioningserver.utils.services: [info] Beaconing process for enp0s3 started.
Jun 04 08:41:14 u24maas maas-rackd[5541]: provisioningserver.utils.services: [info] Beaconing process for enp0s8 started.
Jun 04 08:41:15 u24maas maas-rackd[5541]: provisioningserver.utils.services: [critical] Beaconing process for enp0s3 failed.
Jun 04 08:41:15 u24maas maas-rackd[5541]:         Traceback (most recent call last):
Jun 04 08:41:15 u24maas maas-rackd[5541]:         Failure: twisted.internet.error.ProcessTerminated: A process has ended with a probable error condition: process ended with exit code 3.
Jun 04 08:41:15 u24maas maas-rackd[5541]:
Jun 04 08:41:15 u24maas maas-rackd[5541]: provisioningserver.utils.services: [critical] Beaconing process for enp0s8 failed.
Jun 04 08:41:15 u24maas maas-rackd[5541]:         Traceback (most recent call last):
Jun 04 08:41:15 u24maas maas-rackd[5541]:         Failure: twisted.internet.error.ProcessTerminated: A process has ended with a probable error condition: process ended with exit code 3.
Jun 04 08:41:15 u24maas maas-rackd[5541]:
Jun 04 08:42:14 u24maas maas-rackd[5541]: provisioningserver.utils.services: [info] Beaconing process for enp0s3 started.
Jun 04 08:42:14 u24maas maas-rackd[5541]: provisioningserver.utils.services: [info] Beaconing process for enp0s8 started.
Jun 04 08:42:15 u24maas maas-rackd[5541]: provisioningserver.utils.services: [critical] Beaconing process for enp0s3 failed.
2

Do you have 2 DHCP servers on that network?

3

I think no 2 dhcp server.

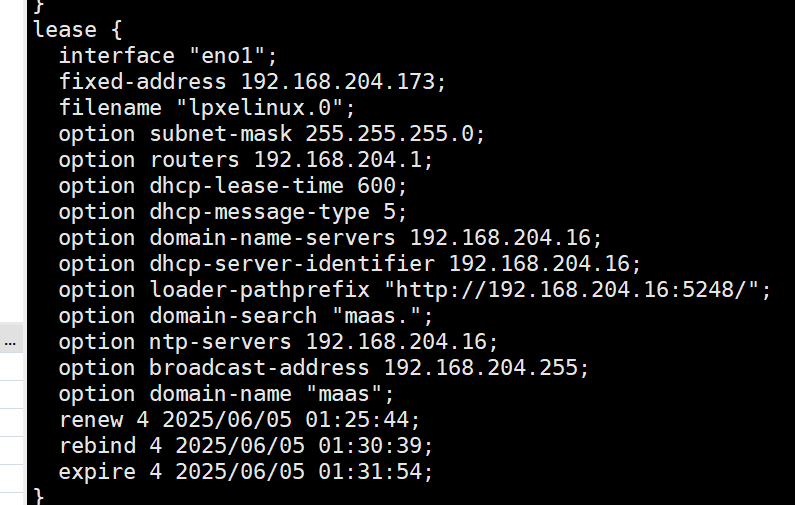

I set 192.168.204.173 static dhcp in maas,this server with dhclinet can get 204.173 from maas[204.16]

image795×505 43.8 KB

.

4

I think I happen some another issue
first step,I can not clear find logs and check logs which cause this thing

5

The failure is on machine’s side. So you have to look at the serial console of your server to understand what’s going on

6

For example, is your server using legacy bios or uefi?

7

my server use uefi,bro

8

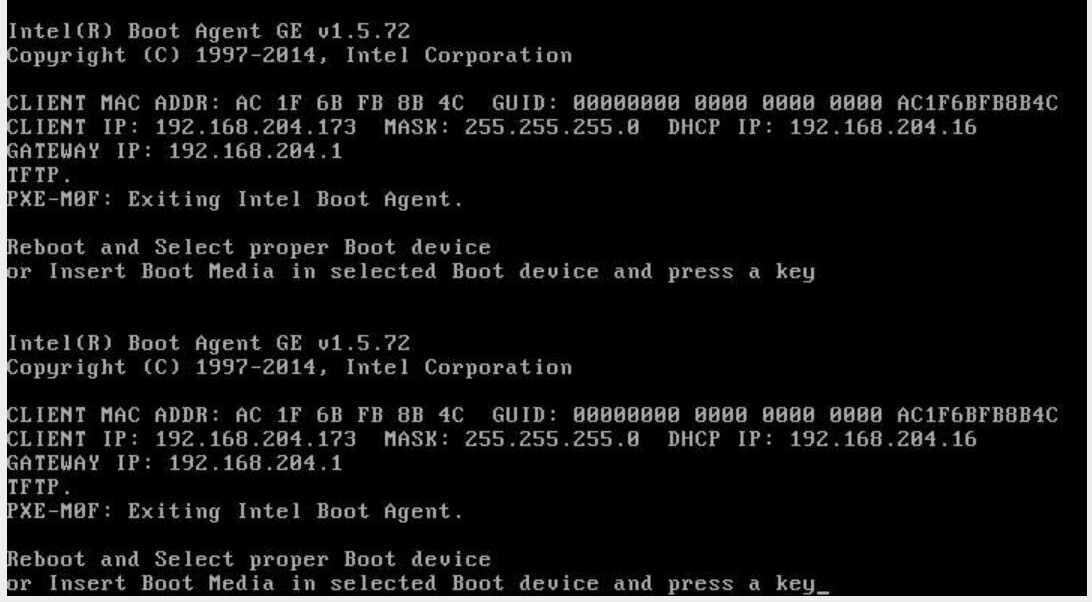

ater set DUAL mode,like this ,bro

image1092×602 120 KB

9

Then you should not use lpxelinux.0, bro

10

how to set bios,so pxe can use anther one instead of lpxelinux.0
I try legacy /UEFI/DUAL,all nok

11

Is 192.168.204.0 your home network? Do you have your ISP router on that network that is providing DHCP as well?

Also, what’s the status of the images on the MAAS UI?

12

which one is correct

13

I actually misunderstood one of your messages earlier, so I’d suggest to remove the machine from your MAAS UI (if you already added it) and try to enlist it with either legacy bios or uefi.

Also, do you mind running sudo tcpdump -i any -w bro.pcap port 67 or port 68 on the node where you have MAAS running, start the server and wait until it fails to PXE boot? Then you upload bro.pcap somewhere so I can take a look at it

14

I think issue at machine side biso setup,no manualy add machine first

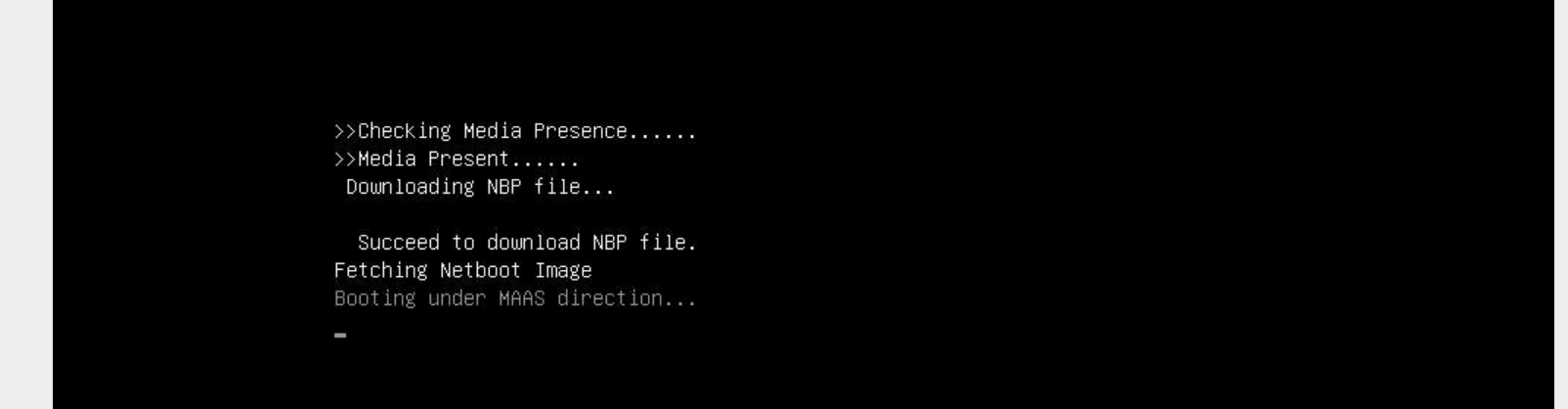

HI,now pxe seems ok,but screen stay here long time and can not go on.

image1638×321 59.2 KB

15

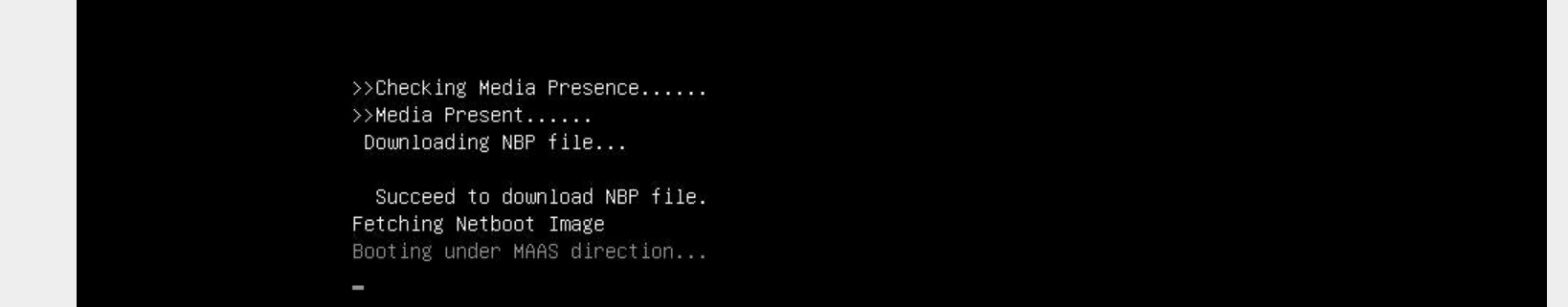

hi,stick here,how to check further more

image1604×418 56.8 KB

16

delet log delet log delet log delet logdelet log

17

I think there is something wrong with your setup. Could be that regiond is not started do to some error?

18

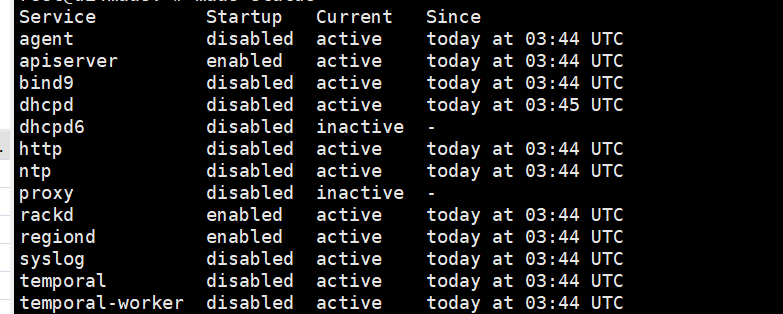

regiond is ok

image783×314 32.8 KB

19

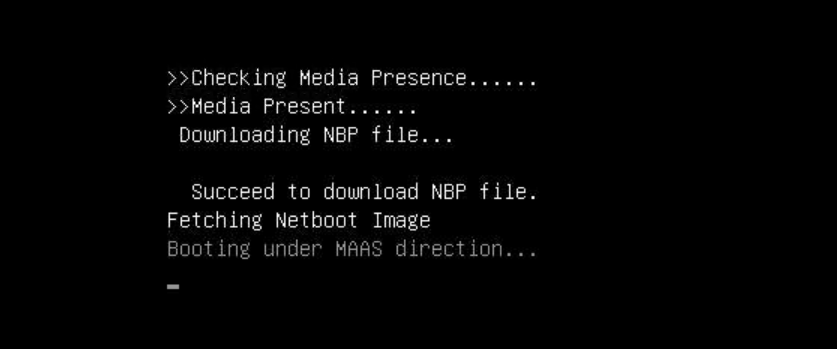

long time later,machine screen still hang on Booting under MAAS direction.
but machine appeare in machins list ,new state,I don’t konw the why,reboot many times.
At web ui,commissioning it again,very slow
machine screen still show Booting under MAAS direction.
web ui keep commissioning long time and test scripts pend.
half an hour,commission failed
Fri, 06 Jun. 2025 07:00:53 Marking node failed - Node operation ‘Commissioning’ timed out after 30 minutes.

20

image837×349 54.5 KB

long long time this status
and web ui commissiong long long time
seems will fail after half an hour
how to check this issue
