MAAS Image Builder

MAAS Image Builder is an alternative to packer for creating MAAS images.

In order to use MAAS Image Builder, you must purchase Ubuntu Advantage for Infrastructure.

With the MAAS Image Builder, you can:

You can customize most images as much or as little as you wish, then use them to commission machines with MAAS.

Install MAAS Image Builder

To get MAAS Image Builder, you must be subscribed to a private PPA provided by Canonical Support to those customers who have purchased Ubuntu Advantage for Infrastructure. Note that the steps below will fail if you have not purchased Ubuntu Advantage and been subscribed to the private PPA by your Canonical support rep.

Once subscribed, you need to obtain your credentials at this external link:

Also, you must add the repository with the add-apt-repository command. Note: Be sure to substitute your unique URL in the command below:

$ sudo add-apt-repository \
“https://LaunchpadID:Password@private-ppa.launchpad.net/maas-image-builder-partners/stable/ubuntu"

Once you have added the private PPA, you can install the Image Builder like this:

$ sudo apt-get install maas-image-builder

All done? Great! Now you can build and customize images for MAAS machines, as shown in the sections below.

Create custom CentOS images

MAAS already provides the latest available CentOS 6, CentOS 7, and CentOS 8 for automatic download. If you need something else, though, MAAS Image Builder supports the ability to create various CentOS images.

Network Requirements

Access to the Internet is required, since you will need to start with one of these:

Creating images behind a proxy

MAAS Image Builder can create CentOS images behind a proxy – just set the ‘http_proxy’ environment variable to your particular proxy. Once deployed, yum will use this MAAS-configured proxy.

Creating the images

maas-image-builder is designed to automate the process of generating the images for MAAS and curtin. Here are some specific examples:

$ sudo maas-image-builder -o centos6-amd64-root-tgz --arch amd64 centos --edition 6
$ sudo maas-image-builder -o centos6-i386-root-tgz --arch i386 centos --edition 6
$ sudo maas-image-builder -o centos7-amd64-root-tgz --arch amd64 centos --edition 7

Customizing CentOS images

Starting from MAAS Image Builder 1.0.4, customization of CentOS images is now supported. You can provide a custom kickstart, in addition to the kickstart that MAAS Image Builder uses to create the images. You can customize your image like this:

$ sudo maas-image-builder -o centos7-amd64-root-tgz --arch amd64 centos --edition 7 --custom-kickstart ./custom.ks

Uploading the image into MAAS

Custom CentOS images can be uploaded to MAAS as shown in the command below. Do note that the name must start with ‘centos’ and must be one line:

maas admin boot-resources create name=centos/centos6-custom architecture=amd64/generic content@=./build-output/centos-amd64-root-tgz

You can use the MAAS WebUI to check that your custom CentOS image is valid and selectable for deployment.

Building RHEL images

Currently, MAAS only supports RHEL as a custom image. In future versions of MAAS, RHEL will be natively supported.

Some Requirements

In order to create RHEL images, you will need access to:

Creating images behind a proxy

MAAS image builder supports creating RHEL images behind a proxy. To use a proxy when building a RHEL image, just set the ‘http_proxy’ environment variable to your local proxy. Once deployed, yum will use the MAAS-configured proxy.

Creating the images

To generate a usable RHEL image, maas-image-builder automates image generation; these images can be used by MAAS and curtin.

 $ sudo maas-image-builder -a amd64 -o rhel7-amd64-root-tgz rhel --rhel-iso blah.iso

Install into MAAS

The custom RHEL image can be uploaded to MAAS, but note that the name must start with ‘rhel’ and must be expressed as a single line, like this:

maas admin boot-resources create name=rhel/7 title="RedHat Enterprise Linux 7" architecture=amd64/generic content@=rhel7-amd64-root-tgz

Building Windows Images

Since Windows is a proprietary operating system, MAAS can’t download these images. You need to manually generate images to use with MAAS. On the upside, the end result will be much simpler, since there are CLI and WebUI tools to upload a Windows ISO – which helps automate the process.

Hyper-V 2012 R2
In this example, Windows Hyper-V 2012 R2 is used, but rest assured that multiple versions are supported. Download the Hyper-V 2012 R2 ISO from Microsoft, so it can be used in the image generation process. You can obtain the download at:

http://technet.microsoft.com/en-US/evalcenter/dn205299.aspx

Other supported versions include (for --windows-edition):

  • win2012
  • win2012r2
  • win2012hv
  • win2012hvr2
  • win2016
  • win2016hv

Image Builder

MAAS Image builder can automate the process of generating images for MAAS and curtin. In this instance, though, you need Windows drivers for your specific hardware. You can obtain these windows drivers with the following command:

sudo maas-image-builder -o windows-win2012hvr2-amd64-root-dd  windows \
--windows-iso ~/Downloads/2012hvr2.ISO \
--windows-edition win2012hvr2 [--windows-updates] \
[--windows-drivers <folder/>]  [--windows-language en-US]

As an example, consider:

sudo maas-image-builder -o windows-win2012hvr2-amd64-root-dd windows \
--windows-iso win2012hvr2.iso  --windows-edition win2012hvr2 \
--windows-updates --windows-drivers ~/Win2012hvr2_x64/DRIVERS/  --windows-language en-US

Please note that this will not install any Windows updates. In order to obtain an up-to-date image of Windows, be sure provide the –windows-updates flag. This requires access to a bridged connection with a DHCP server, an interface that can be specified with -i.

Also note that you may be required to have specific Windows drivers for this image to work in your hardware. Be sure you inject those drivers when installing them. Those drivers are the default *.inf files.

Debug

You can debug the Windows installation process by connecting to localhost:5901 using a VNC client.

Install into MAAS

The generated images need to be placed into the correct directories so MAAS can deploy them onto a node:

maas admin boot-resources create name=windows/win2012hvr2 \
architecture=amd64/generic filetype=ddtgz \
content@=./build-output/windows-win2012hvr2-amd64-root-dd

Now, using the MAAS WebUI, a node can be selected to use Windows Hyper-V 2012 R2. This selection gets reset when a node is stopped, so make sure to set it before starting nodes. You can also set the default operating system (and release) in the settings menu, which removes the need to set it per-node.

Dealing with other custom images

To install other custom images, use the following command sequence:

maas <user> boot-resources create name=<custom-image-codename> title="Ubuntu Custom Image" \
architecture=amd64/generic content@=/location/of/custom/image/ubuntu-custom-root-tgz

As an example:

maas admin boot-resources create name=custom1 \
title=”Ubuntu Custom Image” architecture=amd64/generic \
content@=/home/ubuntu/ubuntu-custom-root-tgz
1 Like

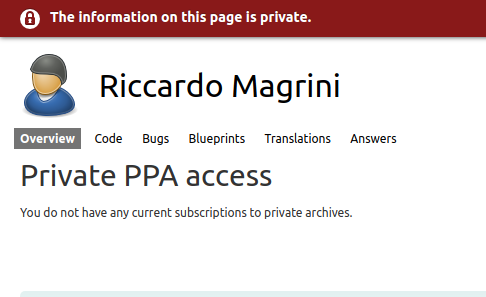

I’d like to create a Debian image and upload that on MAAS but when I try to open this
link its feedback is that

Screenshot%20from%202020-05-19%2023-23-12.

I have the same problem. The question is that

  • How do I subscribe to maas-image-builder PPA? I can’t find this information anywhere and I have a chat with Canoncial support but it seems that no one know how to subscribe to the PPA and who we can contact for subscribing to it.
1 Like

@muichun, do you have Ubuntu Advantage for Infrastructure? It’s a required purchase to gain access to the PPA. See https://support.canonical.com/ua/s/article/How-to-access-the-MAAS-Image-Builder-tool for details.

If you have already purchased it, please let me know and I’ll try to get you properly connected.

I have a .raw.xz image, does maas support it? How can I add it and boot it?

It should work if you upload the image using the API

maas $PROFILE boot-resources create name=$IMAGE_NAME title=$TITLE filetype=ddxz content@=filename.raw.xz

MAAS supports the following types

filetype Meaning
tgz The files of an image gzipped compressed in a tar.
tbz The files of an image bzipped compressed in a tar.
txz The files of an image xz compressed in a tar.
ddtgz A raw disk image stored in a gzipped compressed tar. Storage options are not available for the root disk .
ddtbz A raw disk image stored in a bzipped compressed tar. Storage options are not available for the root disk .
ddtxz A raw disk image stored in an xz compressed tar. Storage options are not available for the root disk .
ddtar A raw disk image stored in an uncompressed tar. Storage options are not available for the root disk .
ddbz2 A raw disk image bzipped compressed.
ddgz A raw disk image gzipped compressed.
ddxz A raw disk image xz compressed.
ddraw A raw disk image uncompressed.

you have mentioned on the github that you guys put the source free, would you please clear me ?
