Trouble with LXD Clusters in MAAS

ben-ihelputech · 9 June 2022 14:45

Trouble with Setting Up LXD Clusters in MAAS

Hello! I have been working with maas to try and setup a LXD cluster.

Setup

Maas Controller:
Dell Optiplex (nothing special, just an extra computer that I had around.)
The MAAS controller is setup as the DHCP server for the network. I just have one fabric with a 10.113.1.0/24 subnet for no particular reason. Setup is mainly proof-of-concept for now.
MAAS clients:
3x Dell PowerEdge T630’s with Intel 10GB network cards and IPMI.

Versions

Maas Controller:

$ snap list | grep maas
maas                       3.2.0~beta6-11974-g.58f181df4  21449  3.2/beta         canonical**  -
maas-cli                   0.6.5                          13     latest/stable    canonical**  -
maas-test-db               12.4-22-g.aed1dfe              91     3.1/stable       canonical**  -

(This was also tested with 3.1/stable with the same results.)

The Dell PowerEdge servers are deployed with MAAS with the Ubuntu 22.04 LTS cloud image.

$ cat /etc/os-release
PRETTY_NAME="Ubuntu 22.04 LTS"
NAME="Ubuntu"
VERSION_ID="22.04"
VERSION="22.04 LTS (Jammy Jellyfish)"
VERSION_CODENAME=jammy
ID=ubuntu
ID_LIKE=debian
HOME_URL="https://www.ubuntu.com/"
SUPPORT_URL="https://help.ubuntu.com/"
BUG_REPORT_URL="https://bugs.launchpad.net/ubuntu/"
PRIVACY_POLICY_URL="https://www.ubuntu.com/legal/terms-and-policies/privacy-policy"
UBUNTU_CODENAME=jammy

$ snap list | grep lxd
lxd     5.2-79c3c3b  23155  latest/stable  canonical**  -

What I have tried

I have tried following the following articles:

h ttps://maas.io/docs/whats-new-in-maas#heading–lxd-clusters
htt ps://maas.io/docs/how-to-use-lxd

I am able to get the LXD cluster going using lxd init on the first Dell PowerEdge server and following the prompts. I then add the other two PowerEdge’s using lxd init again and copy/pasting their join tokens. However, when I add the LXD host from the maas KVM page, it just shows up as a single cluster.

Related Info

MAAS Dashboard:

$ maas admin machines read | jq 'insert jq magic here'
HOSTNAME      SYSID   POWER    STATUS    OWNER  TAGS             POOL     VLAN      FABRIC    SUBNET
--------      -----   -----    ------    -----  ----             ----     ----      ------    ------
fun-shad      ncw7a4  on       Deployed  ben    metal            default  untagged  fabric-1
moral-dassie  krrkfk  on       Deployed  ben    metal            default  untagged  fabric-1
new-drum      p68mcg  on       Deployed  ben    metal            default  untagged  fabric-1

LXD Cluster:

root@fun-shad:~# lxc cluster list
+--------------+--------------------------+-----------------+--------------+----------------+-------------+--------+-------------------+
|     NAME     |           URL            |      ROLES      | ARCHITECTURE | FAILURE DOMAIN | DESCRIPTION | STATE  |      MESSAGE      |
+--------------+--------------------------+-----------------+--------------+----------------+-------------+--------+-------------------+
| fun-shad     | https://10.113.1.73:8443 | database-leader | x86_64       | default        |             | ONLINE | Fully operational |
|              |                          | database        |              |                |             |        |                   |
+--------------+--------------------------+-----------------+--------------+----------------+-------------+--------+-------------------+
| moral-dassie | https://10.113.1.74:8443 | database        | x86_64       | default        |             | ONLINE | Fully operational |
+--------------+--------------------------+-----------------+--------------+----------------+-------------+--------+-------------------+
| new-drum     | https://10.113.1.72:8443 | database        | x86_64       | default        |             | ONLINE | Fully operational |
+--------------+--------------------------+-----------------+--------------+----------------+-------------+--------+-------------------+

Images:

Thanks in advance to anyone who helps!

billwear · 13 June 2022 18:12

it shows up as a single cluster because that’s what you created. are you confusing VMs with clusters? can you explain more what you’re trying to accomplish?

ben-ihelputech · 14 June 2022 21:50

Hello Bill,

First off, thanks for replying. I would like to deploy a LXD cluster using bare metal I have deployed through MAAS. Hostnames fun-shad, moral-dassie, and new-drum are all bare metal servers I have provisioned with MAAS. On each of the bare metal host, I have run lxd init and gone through the prompt to setup lxd clustering. That portion works just fine. However, when I go back to maas and try adding the lxd cluster, that’s were I have the issue. I add the lxd cluster leader and it only shows that is just a single node instead of being a part of a cluster.

So I guess to answer your question, I’m trying to deploy a LXD cluster fully managed with MAAS. Hopefully that makes sense. Due to limitation of this forum, I could only post two images and two links so I couldn’t share more pictures to explain the problem.

billwear · 14 June 2022 22:01

first, have you tried maas $PROFILE vmhosts read? tell me what you see if you try that.

ben-ihelputech · 15 June 2022 15:51

$ maas $profile vm-hosts read
Success.
Machine-readable output follows:
[
    {
        "host": {
            "system_id": "xyeckb",
            "__incomplete__": true
        },
        "architectures": [],
        "zone": {
            "name": "default",
            "description": "",
            "id": 1,
            "resource_uri": "/MAAS/api/2.0/zones/default/"
        },
        "storage_pools": [],
        "capabilities": [],
        "id": 6,
        "version": "",
        "total": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "available": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "cpu_over_commit_ratio": 1.0,
        "memory_over_commit_ratio": 1.0,
        "default_macvlan_mode": null,
        "tags": [
            "pod-console-logging"
        ],
        "name": "flying-adder-cluster",
        "type": "lxd",
        "used": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "pool": {
            "name": "default",
            "description": "Default pool",
            "id": 0,
            "resource_uri": "/MAAS/api/2.0/resourcepool/0/"
        },
        "resource_uri": "/MAAS/api/2.0/vm-hosts/6/"
    }
]

ben-ihelputech · 16 June 2022 14:11

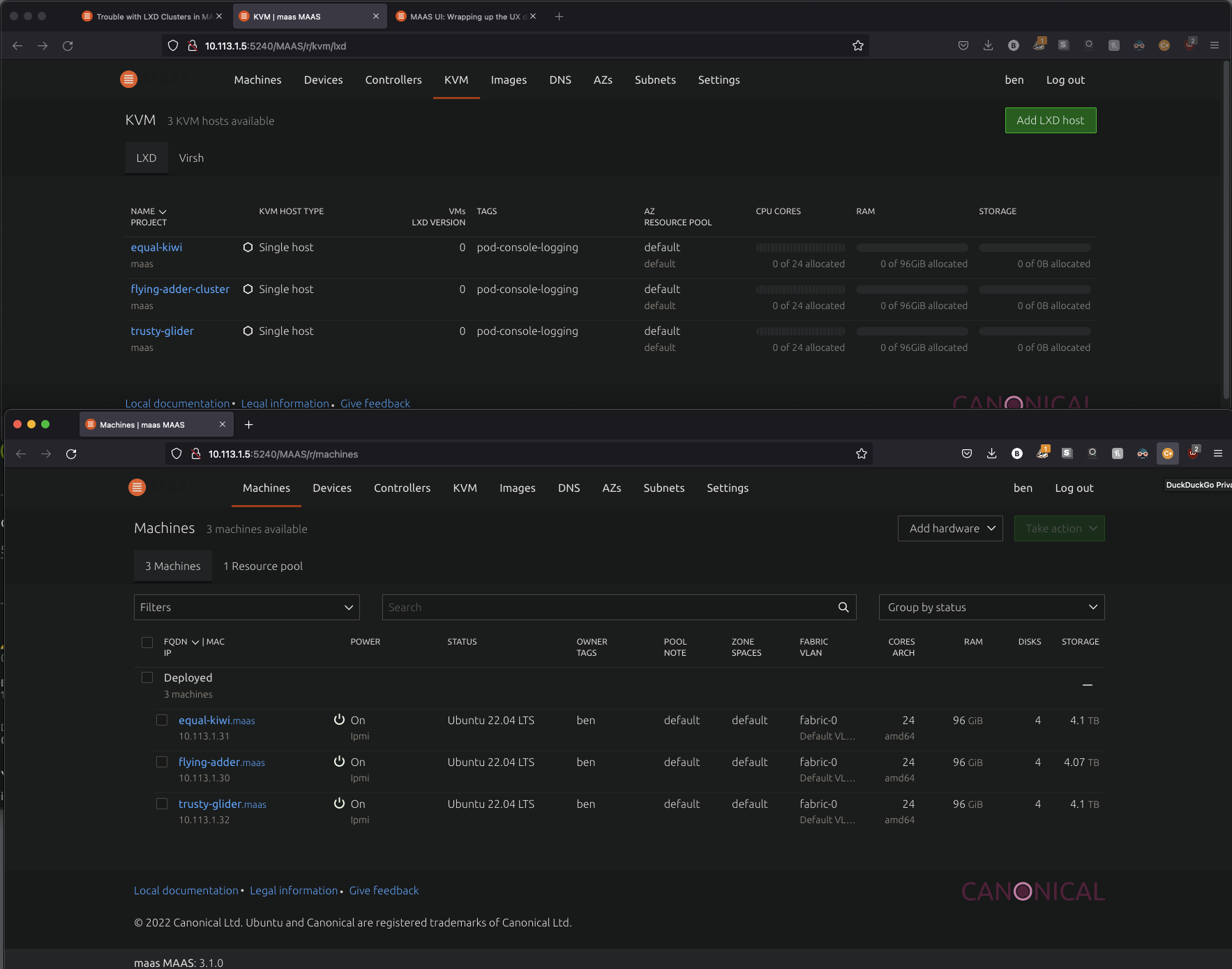

I tried added each host individually to see if it would detect that the host were configured as a cluster, but that didn’t seem to work either. It was able to add the host, but they each show up by themselves.

$ maas $profile vm-hosts read
Success.
Machine-readable output follows:
[
    {
        "host": {
            "system_id": "xyeckb",
            "__incomplete__": true
        },
        "architectures": [],
        "zone": {
            "name": "default",
            "description": "",
            "id": 1,
            "resource_uri": "/MAAS/api/2.0/zones/default/"
        },
        "storage_pools": [],
        "capabilities": [],
        "id": 6,
        "version": "",
        "total": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "available": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "cpu_over_commit_ratio": 1.0,
        "memory_over_commit_ratio": 1.0,
        "default_macvlan_mode": null,
        "tags": [
            "pod-console-logging"
        ],
        "name": "flying-adder-cluster",
        "type": "lxd",
        "used": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "pool": {
            "name": "default",
            "description": "Default pool",
            "id": 0,
            "resource_uri": "/MAAS/api/2.0/resourcepool/0/"
        },
        "resource_uri": "/MAAS/api/2.0/vm-hosts/6/"
    },
    {
        "host": {
            "system_id": "yyyd3n",
            "__incomplete__": true
        },
        "architectures": [],
        "zone": {
            "name": "default",
            "description": "",
            "id": 1,
            "resource_uri": "/MAAS/api/2.0/zones/default/"
        },
        "storage_pools": [],
        "capabilities": [],
        "id": 7,
        "version": "",
        "total": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "available": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "cpu_over_commit_ratio": 1.0,
        "memory_over_commit_ratio": 1.0,
        "default_macvlan_mode": null,
        "tags": [
            "pod-console-logging"
        ],
        "name": "equal-kiwi",
        "type": "lxd",
        "used": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "pool": {
            "name": "default",
            "description": "Default pool",
            "id": 0,
            "resource_uri": "/MAAS/api/2.0/resourcepool/0/"
        },
        "resource_uri": "/MAAS/api/2.0/vm-hosts/7/"
    },
    {
        "host": {
            "system_id": "gyepxp",
            "__incomplete__": true
        },
        "architectures": [],
        "zone": {
            "name": "default",
            "description": "",
            "id": 1,
            "resource_uri": "/MAAS/api/2.0/zones/default/"
        },
        "storage_pools": [],
        "capabilities": [],
        "id": 8,
        "version": "",
        "total": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "available": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "cpu_over_commit_ratio": 1.0,
        "memory_over_commit_ratio": 1.0,
        "default_macvlan_mode": null,
        "tags": [
            "pod-console-logging"
        ],
        "name": "trusty-glider",
        "type": "lxd",
        "used": {
            "cores": 0,
            "memory": 0,
            "local_storage": 0
        },
        "pool": {
            "name": "default",
            "description": "Default pool",
            "id": 0,
            "resource_uri": "/MAAS/api/2.0/resourcepool/0/"
        },
        "resource_uri": "/MAAS/api/2.0/vm-hosts/8/"
    }
]

Note: These are the same three bare metal dell boxes, but I had to reconfigure maas so they have different names now.

ben-ihelputech · 16 June 2022 15:37

Solved: RTFD

Turns out I shouldn’t have ignored the fact that only Ubuntu 20 LTS is currently supported. I redeployed with Ubuntu 20.04 instead of Ubuntu 22.04 LTS. Hopefully support is added for Ubuntu 22 soon.

billwear · 16 June 2022 16:48

cool, glad we solved that. we were just noticing that. thanks for bouncing back.
