Serving multiple DHCP subnets from MAAS

I’ve got two different VLANs (“production” and “testing”) which I would like to use with MAAS. So we’ve got MAAS sitting in VLAN “infrastructure”, and a L3 switch routes between “production”, “testing” and “infrastructure”.

The L3 switch also provides DHCP forwarding (which I think is also called DHCP helper in some products) to forward the DHCP broadcasts from “production” to “infrastructure” and from “testing” to “infrastructure”.

We’ve got a single Region+Rack setup.

This works for production. The requests are served, and the machine is able to contact MAAS for commissioning. However, when testing makes a request it gets issued an IP address in production, and therefore commissioning fails.

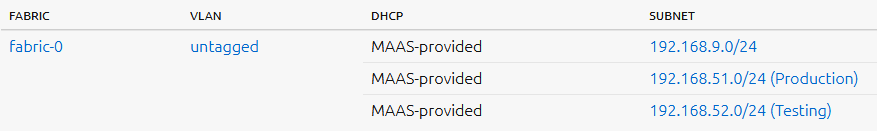

I believe this has been raised before: Bug #1640298 “multiple subnets dhcp shared-network does not work...” : Bugs : MAAS, but apparently this functionality should be possible based on: Bug #1254807 “Feature Request - MAAS cluster controller serve mu...” : Bugs : MAAS

Can anyone please advise on what the configuration should be?

Did you ever get a solution for this? We are facing the same problem!

Hi, I’m curious how your DHCP relay is configured. If you check this article, it states that the source address should come from the subnet it is being relayed from (in your case for test it should be 192.168.52.x which is the IP on the DHCP relay which I assume is the default gateway for that subnet).

That is the information that a DHCP server (in this case MAAS) would need to see to know which DHCP pool/scope to use to reply.

If you’re not sure what the relay is using for a source address, you could do a tcpdump on the MAAS server receiving the DHCP requests from the relay and check.

This link explains it fairly well: https://community.spiceworks.com/topic/444712-how-does-a-dhcp-server-know-what-subnet-to-assign

I was never able to find a solution to this. In the end we disposed of the DHCP forwarding on the switches and gave MAAS a trunk connection to the network instead (and a subinterface in every VLAN that we needed to do provisioning in).

That’s probably a more elegant solution anyway, but obviously won’t suit everyone. Sorry, I’ve not found out a solution.

Hi Anton,

I can’t speak for @seitz-a, but it looks like we were having the same issue so I’ll describe how mine was set up.

  • Core switch configured with multiple VLANs
  • Core switch has an L3 interface in each VLAN, providing inter VLAN routing
  • MAAS (with DHCP server) is in one of the VLANs (VLAN X)
  • Other VLANs (e.g. VLAN Y) have no DHCP server available, but on the switch the logical VLAN interface specifies a relay (on our HPE switch it is dhcp select relay and dhcp relay server-address x.x.x.x)

Therefore when a device in LAN Y makes a DHCP broadcast, the switch hears it and forwards it out on LAN X to the specified server (MAAS), with the GIADDR field set to its own address in LAN Y. MAAS’s DHCP therefore replies with an offer for an address in LAN Y. And the PXE boot works. So the problem is not with the DHCP helper/forwarding features as far as I can see.

The problem is when the booted device gets its networking configuration from MAAS (which I believe is not from DHCP but is instead provided a static IP address via a web service call) it is provided an IP address in LAN X, not LAN Y, and we end up with a running machine with no network connectivity.

Hi Forky,

ok I understand your setup but we need more info. Can you share how one of your test machines is configured in MAAS (after deployment)? What does it’s netplan file look like?

Also how your subnets and VLANs are configured in MAAS. I assume you have DHCP enabled on each subnet that you want to allocate from.

It’s likely that we should get you to file a bug and provide all this info - could you do so on launchpad? https://bugs.launchpad.net/maas

if you do, please provide as much info as you can. We need to see what happened during commissioning and also during/after deployment. Full config of how your VLANs and subnets are configured in MAAS, and how you configured your machines before deployment.

Regards,
Anton

Hi @anton5mith,

Understood your need for more concrete information like logs and detailed configuration but I abandoned the problem a long time ago. I’d be willing to do the work at some point but I’m too busy just now to get back into the issue. Perhaps @seitz-a, who is currently going through the issue, is in a better position to provide evidence?

hi @forky2, understand. This is an important feature for us to support so appreciate any inputs we can get. @seitz-a - let me know if you file a bug report.

Bringing this back up, I’m on v3.4 at the moment and dealing with the same issue. I spent a period of time last night looking more into this, I think this is due to MAAS configuring items that are “in the same VLAN”, in what is called a shared-network. I said “in the same VLAN”, because when a network engineer says “untagged”, we usually think layer 3 interface (so no VLAN), or a native vlan. MAAS seems to assume VLAN1, which I feel like is erroneous.

Here are some docs on shared networks: https://support.microfocus.com/kb/doc.php?id=7004091

Shared networks are used for situations where you have vlan growth, so in Cisco CLI syntax:

int vlan 100
ip address 10.100.0.0 255.255.255.0
ip address 10.101.0.0 255.255.255.0 secondary
!! MAAS IP HELPER
ip helper-address 192.168.10.10

However when the MAAS rack controller, or whichever MAAS instance is serving DHCP is in a different VLAN, and you don’t have the ability to put the VLAN into the VM/etc, I would just traditionally just define my subnets and point a DHCP relay to them, not putting them in a shared network.

I read one post somewhere that brought me into suspecting the shared-network is the root cause of my issues being that they were able to remove the shared network line, and the closing bracket, and MAAS work as expected, I wasn’t able to figure out how to do that without MAAS overwriting my configuration, though.

I keep seeing posts and bug reports saying this issue has been fixed, but some lingering issues had been ongoing, is there just documentation I’m missing somewhere, I suppose?

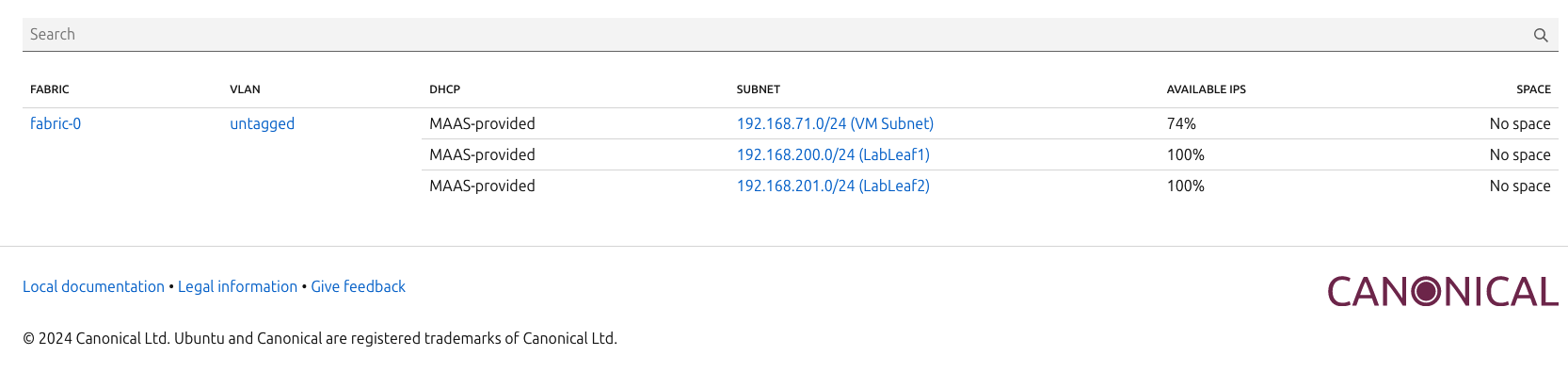

Here are my subnets within MAAS. The goal is to have 1-2 rack controllers controlling 256 nodes, across about 16 subnets or so.

My network switch configuration (Juniper):

root@office-sw01> show configuration forwarding-options dhcp-relay
forward-snooped-clients all-interfaces;
overrides {
    allow-snooped-clients;
    no-bind-on-request;
    delete-binding-on-renegotiation;
}
server-group {
    dhcp {
        192.168.88.10;
    }
    MAAS {
        192.168.71.10;
    }
}
active-server-group dhcp;
group MAAS {
    active-server-group MAAS;
    overrides;
    interface vlan.200;
    interface vlan.201;
    interface vlan.202;
    interface vlan.203;
    interface vlan.204;
}

{master:0}
root@office-sw01>
root@office-sw01> show configuration interfaces vlan
(filtered)
unit 200 {
    family inet {
        address 192.168.200.254/24;
    }
}
unit 201 {
    family inet {
        address 192.168.201.254/24;
    }
}
unit 202 {
    family inet {
        address 192.168.202.254/24;
    }
}
unit 203 {
    family inet {
        address 192.168.203.254/24;
    }
}
unit 204 {
    family inet {
        address 192.168.204.254/24;
    }
}

{master:0}
root@office-sw01>

If I were in a Cisco environment, I would do:

int vlan 200
ip address 192.168.200.1 255.255.255.0
ip helper-address 192.168.71.10
!
int vlan 201
ip address 192.168.201.1 255.255.255.0
ip helper-address 192.168.71.10
!
int vlan 202
ip address 192.168.202.1 255.255.255.0
ip helper-address 192.168.71.10

Again, let me know your thoughts on the matter…
