Deploying custom Rocky 9 image: cannot open root device: squash

Users
,
1

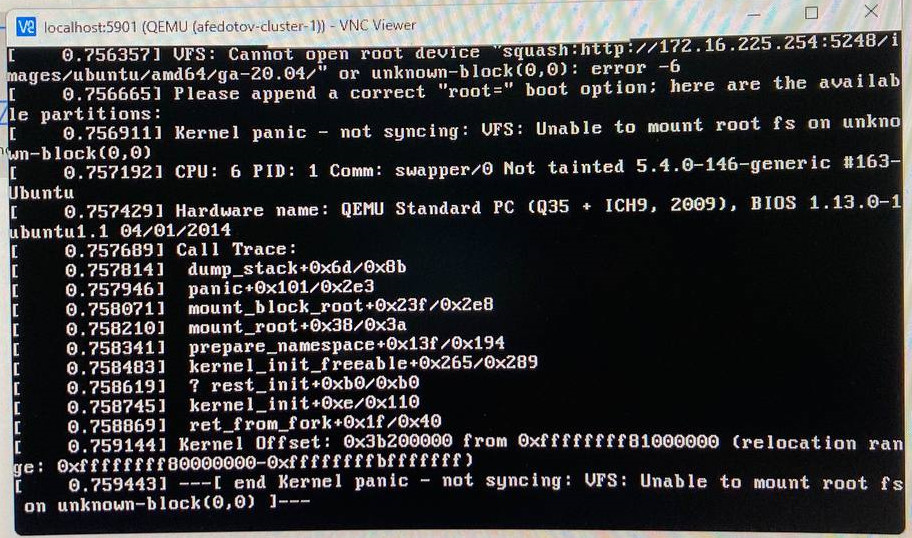

During last step (machine deploy {{ item.system_id }} distro_series="custom/rocky9") I get the following error on the machine I’m deploying to.

What may be the reason for that?

image912×538 204 KB

2

I’ve checked the web server works, and machine correctly booted several times before this using other images, eg a commissioning image. I’ve also recorded a video and can extract previous logs from it if needed.

3

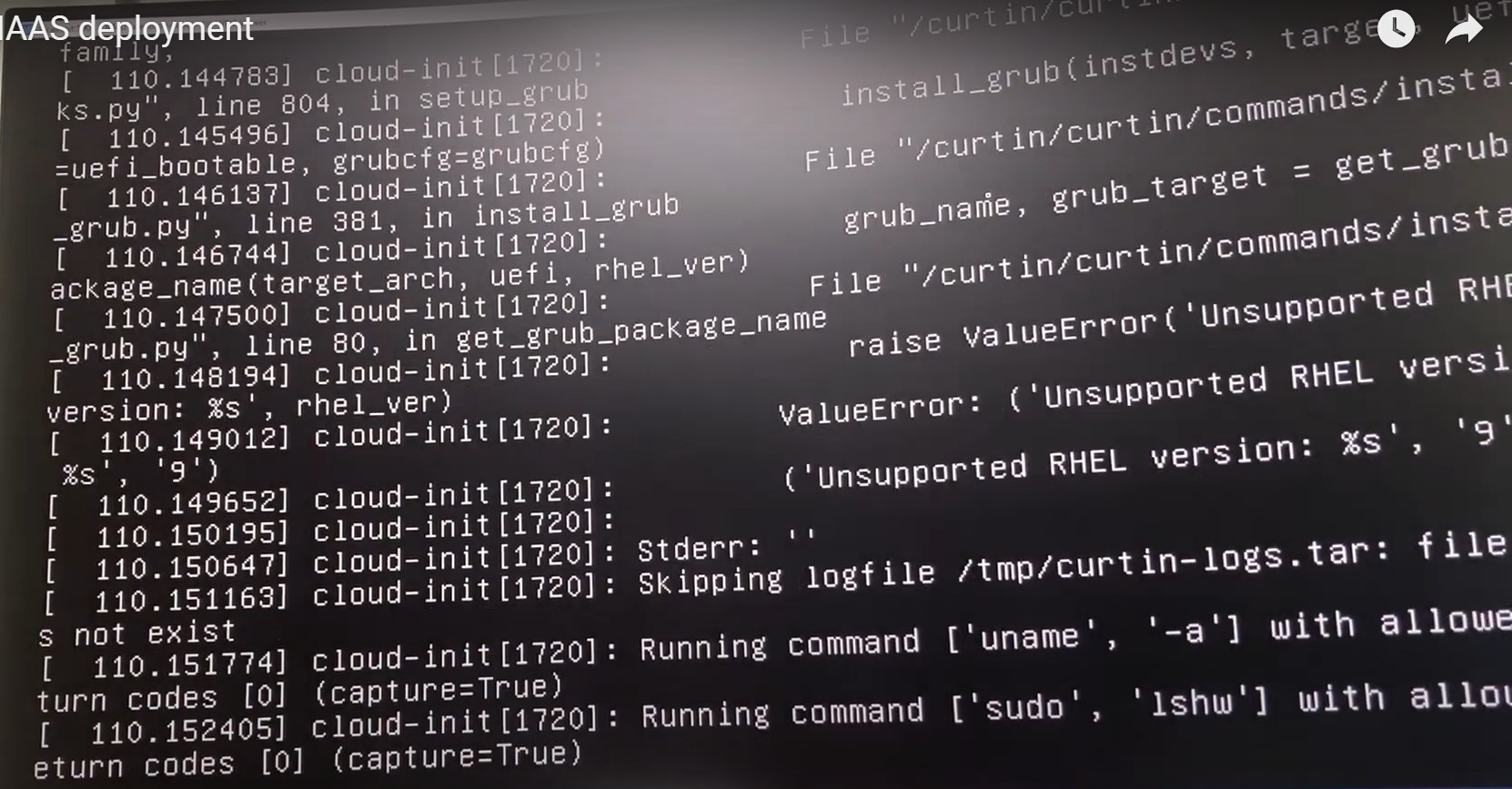

image1920×1080 338 KB

this one is pretty interesting; why might MAAS refers to rocky as no-such-image?

4

The no-such-image path occurs when the deployment failed, the host reboots and asks MAAS for an image to netboot. This is now a Rocky host, and MAAS doesn’t support this operation, so it cannot find a suitable image and returns this invalid path.

Please check the Installation Output in the Logs tab

1 Like
5

thanks, I will check the previous step!

6


it looks like a problem with curtin which does not like RHEL 9; I will try a patch from https://github.com/canonical/packer-maas/tree/main/rocky9

7

there’s no need for that patch, just use rhel/8 instead. MAAS doesn’t have special handling for different RHEL versions

1 Like
8

I’ve changed the command to maas "{{ maas_user }}" boot-resources create name="custom/rocky9" title='Rocky 9 Custom' architecture=amd64/generic base_image="rhel/8" filetype="tgz" content@="x1/rocky9.tar.gz" and got the same curtin error

Where should I specify rhel/8?

9

The command line is correct. Did you re-use the same database of previous runs? If so, you need to delete the old image first (there was a bug here, the fix is not released yet)

10

I completely delete all virtual machines (including jumphost with MAAS) before start; let me try again

11

I’ve noticed via maas admin boot-resources read that the rocky9 linux image does not have the base_image value recorded

{
    "id": 11,
    "type": "Uploaded",
    "name": "rocky9",
    "architecture": "amd64/generic",
    "resource_uri": "/MAAS/api/2.0/boot-resources/11/",
    "subarches": "generic",
    "title": "Rocky 9 Custom"
}
12

I’ve tried replacing rhel/8 with centos/8 and got the same error mentioning Red Hat version; I wonder in which other place RHEL 9 can be hardcoded, which is later given to curtin; could it be somewhere inside rocky9.tar.gz?

13

Probably /etc/redhat-release.

Sorry I missed that the error was in Curtin. This is fixed but not released yet. Can you test using MAAS from the 3.4/edge channel?

14

I opened a bug for this: https://bugs.launchpad.net/maas/+bug/2027738

15

Hi Alexsander, thanks for your help!
All works for ppa:maas/3.4-next

1 Like
