Bonded interfaces with 802.1Q trunk | This pod does not match the specified networks

Users
1

Hello,
I’m trying to learn MAAS and I’ve run into a road block. In my environment (pre MAAS) all my KVM hosts are connected to an 802.1Q trunk to serve vm gusts on different vlans.

In MAAS, I’ve setup the fabric in a way that I would assume should work but I’m the error This pod does not match the specified networks when trying to deploy a virtual machine.

Here is a netplan configuration that I’m trying to replicate in MAAS:

# This is the network config written by 'subiquity'
network:
  ethernets:
    # onboard
    ens1f0: {}
    ens1f1: {}
    # quad nic
    ens3f0: {}
    ens3f1: {}
    ens3f2: {}
    ens3f3: {}
  bonds:
    bond-mgnt:
      interfaces: [ens1f0,ens1f1]
      parameters:
        mode: 802.3ad
        mii-monitor-interval: 1
      addresses: [10.1.10.10/24]
      nameservers:
        search: [domain.internal]
        addresses: [10.1.40.10]
      routes:
        - to: default
          via: 10.1.10.1
    bond-iscsi:
      mtu: 9000
      interfaces: [ens3f0,ens3f1]
      parameters:
        mode: 802.3ad
        mii-monitor-interval: 1
      addresses: [10.1.20.10/24]
    bond-vm-trunk:
      interfaces: [ens3f2,ens3f3]
      parameters:
        mode: 802.3ad
        mii-monitor-interval: 1
  vlans:
    vlan10:
      id: 10
      link: bond-vm-trunk
    vlan30:
      id: 30
      link: bond-vm-trunk
    vlan50:
      id: 50
      link: bond-vm-trunk

  version: 2

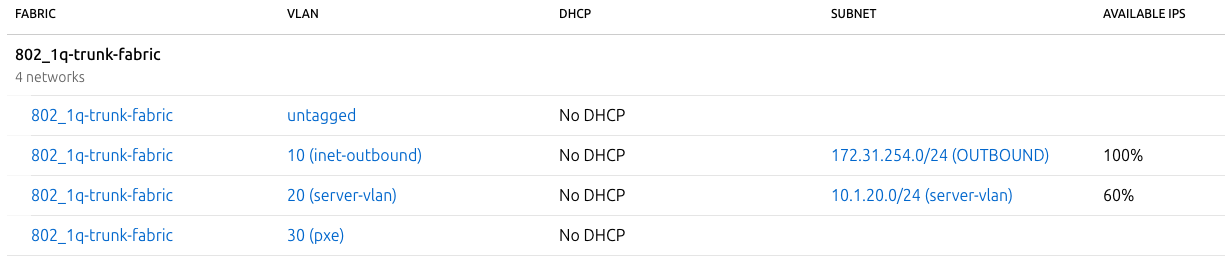

In MAAS I’ve setup a fabric as like this:

Screenshot 2024-11-21 at 4.43.03 PM
Screenshot 2024-11-21 at 4.43.03 PM1225×258 41.5 KB

And then configure the interface of a machine like this, adding the vlans to the bonds:

Screenshot 2024-11-21 at 3.43.57 PM
Screenshot 2024-11-21 at 3.43.57 PM1657×494 94.7 KB

Screenshot 2024-11-21 at 4.41.41 PM

But when I try to create a vm and put it on the server vlan, I get this error.

Screenshot 2024-11-21 at 4.41.12 PM

2

Hi there, could you please provide the KVM host info?

3

Is this what you are looking for?

Machine-readable output follows:
{
    "default_macvlan_mode": null,
    "type": "lxd",
    "cpu_over_commit_ratio": 1.0,
    "tags": [
        "pod-console-logging"
    ],
    "memory_over_commit_ratio": 1.0,
    "id": 93,
    "total": {
        "cores": 24,
        "memory": 131072,
        "local_storage": 491097079808
    },
    "storage_pools": [
        {
            "id": "default",
            "name": "default",
            "type": "dir",
            "path": "Unknown",
            "total": 491097079808,
            "used": 0,
            "available": 491097079808,
            "default": true
        }
    ],
    "name": "honest-swift",
    "host": {
        "system_id": "4waapd",
        "__incomplete__": true
    },
    "pool": {
        "name": "default",
        "description": "Default pool",
        "id": 0,
        "resource_uri": "/MAAS/api/2.0/resourcepool/0/"
    },
    "available": {
        "cores": 24,
        "memory": 131072,
        "local_storage": 491097079808
    },
    "version": "5.21.2",
    "architectures": [
        "amd64/generic"
    ],
    "capabilities": [
        "composable",
        "dynamic_local_storage",
        "over_commit",
        "storage_pools"
    ],
    "used": {
        "cores": 0,
        "memory": 0,
        "local_storage": 0
    },
    "zone": {
        "name": "default",
        "description": "",
        "id": 1,
        "resource_uri": "/MAAS/api/2.0/zones/default/"
    },
    "resource_uri": "/MAAS/api/2.0/vm-hosts/93/"
}

Here is machine info.

Machine-readable output follows:
{
    "last_sync": null,
    "default_gateways": {
        "ipv4": {
            "gateway_ip": "10.1.30.1",
            "link_id": null
        },
        "ipv6": {
            "gateway_ip": null,
            "link_id": null
        }
    },
    "commissioning_status_name": "Passed",
    "testing_status": 2,
    "tag_names": [],
    "current_testing_result_id": 241,
    "power_type": "ipmi",
    "network_test_status_name": "Unknown",
    "swap_size": null,
    "interface_test_status_name": "Unknown",
    "virtualblockdevice_set": [
        {
            "storage_pool": null,
            "available_size": 0,
            "type": "virtual",
            "partition_table_type": null,
            "id_path": null,
            "path": "/dev/disk/by-dname/vgroot-lvroot",
            "numa_node": null,
            "partitions": [],
            "used_for": "ext4 formatted filesystem mounted at /",
            "size": 500095254528,
            "name": "vgroot-lvroot",
            "id": 171,
            "block_size": 4096,
            "system_id": "4waapd",
            "uuid": "dd363575-db64-4d3c-948c-6e854d967d17",
            "filesystem": {
                "fstype": "ext4",
                "label": "root",
                "uuid": "e315d30c-1021-446a-8560-a9915d1104ee",
                "mount_point": "/",
                "mount_options": null
            },
            "model": null,
            "tags": [],
            "serial": null,
            "used_size": 500095254528,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/blockdevices/171/"
        }
    ],
    "network_test_status": -1,
    "pod": null,
    "node_type_name": "Machine",
    "ip_addresses": [
        "10.1.30.235",
        "10.1.40.72",
        "10.195.49.1",
        "fd42:6f86:98e4:a1ce::1"
    ],
    "storage_test_status": 2,
    "osystem": "ubuntu",
    "other_test_status": -1,
    "cpu_test_status": -1,
    "enable_hw_sync": false,
    "power_state": "on",
    "status_action": "",
    "memory_test_status_name": "Unknown",
    "locked": false,
    "volume_groups": [
        {
            "system_id": "4waapd",
            "id": 111,
            "__incomplete__": true
        }
    ],
    "hardware_uuid": "00000000-0000-0000-0000-0cc47a6b1bea",
    "memory": 131072,
    "workload_annotations": {},
    "physicalblockdevice_set": [
        {
            "firmware_version": "3B6Q",
            "storage_pool": null,
            "available_size": 0,
            "type": "physical",
            "partition_table_type": "GPT",
            "id_path": "/dev/disk/by-id/wwn-0x5002538d4228716d",
            "path": "/dev/disk/by-dname/sda",
            "numa_node": 0,
            "partitions": [
                {
                    "uuid": "96d0d99f-c71a-4ab4-ba52-a4c518a3ca2c",
                    "size": 500099448832,
                    "bootable": false,
                    "tags": [],
                    "filesystem": {
                        "fstype": "lvm-pv",
                        "label": null,
                        "uuid": "286efe37-22b5-491d-b6e5-d15350caef50",
                        "mount_point": null,
                        "mount_options": null
                    },
                    "id": 113,
                    "type": "partition",
                    "used_for": "LVM volume for vgroot",
                    "system_id": "4waapd",
                    "path": "/dev/disk/by-dname/sda-part2",
                    "device_id": 166,
                    "resource_uri": "/MAAS/api/2.0/nodes/4waapd/blockdevices/166/partition/113"
                }
            ],
            "used_for": "GPT partitioned with 1 partition",
            "size": 500107862016,
            "name": "sda",
            "id": 166,
            "block_size": 512,
            "system_id": "4waapd",
            "uuid": null,
            "filesystem": null,
            "model": "Samsung SSD 850",
            "tags": [
                "ssd"
            ],
            "serial": "S3PTNB0J801776B",
            "used_size": 500105740288,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/blockdevices/166/"
        }
    ],
    "zone": {
        "name": "default",
        "description": "",
        "id": 1,
        "resource_uri": "/MAAS/api/2.0/zones/default/"
    },
    "storage": 500107.86201599997,
    "status_name": "Deployed",
    "hostname": "honest-swift",
    "fqdn": "honest-swift.insecure-it.local",
    "status_message": "Rebooting",
    "parent": null,
    "blockdevice_set": [
        {
            "firmware_version": "3B6Q",
            "storage_pool": null,
            "available_size": 0,
            "type": "physical",
            "partition_table_type": "GPT",
            "id_path": "/dev/disk/by-id/wwn-0x5002538d4228716d",
            "path": "/dev/disk/by-dname/sda",
            "numa_node": 0,
            "partitions": [
                {
                    "uuid": "96d0d99f-c71a-4ab4-ba52-a4c518a3ca2c",
                    "size": 500099448832,
                    "bootable": false,
                    "tags": [],
                    "filesystem": {
                        "fstype": "lvm-pv",
                        "label": null,
                        "uuid": "286efe37-22b5-491d-b6e5-d15350caef50",
                        "mount_point": null,
                        "mount_options": null
                    },
                    "id": 113,
                    "type": "partition",
                    "used_for": "LVM volume for vgroot",
                    "system_id": "4waapd",
                    "path": "/dev/disk/by-dname/sda-part2",
                    "device_id": 166,
                    "resource_uri": "/MAAS/api/2.0/nodes/4waapd/blockdevices/166/partition/113"
                }
            ],
            "used_for": "GPT partitioned with 1 partition",
            "size": 500107862016,
            "name": "sda",
            "id": 166,
            "block_size": 512,
            "system_id": "4waapd",
            "uuid": null,
            "filesystem": null,
            "model": "Samsung SSD 850",
            "tags": [
                "ssd"
            ],
            "serial": "S3PTNB0J801776B",
            "used_size": 500105740288,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/blockdevices/166/"
        },
        {
            "storage_pool": null,
            "available_size": 0,
            "type": "virtual",
            "partition_table_type": null,
            "id_path": null,
            "path": "/dev/disk/by-dname/vgroot-lvroot",
            "numa_node": null,
            "partitions": [],
            "used_for": "ext4 formatted filesystem mounted at /",
            "size": 500095254528,
            "name": "vgroot-lvroot",
            "id": 171,
            "block_size": 4096,
            "system_id": "4waapd",
            "uuid": "dd363575-db64-4d3c-948c-6e854d967d17",
            "filesystem": {
                "fstype": "ext4",
                "label": "root",
                "uuid": "e315d30c-1021-446a-8560-a9915d1104ee",
                "mount_point": "/",
                "mount_options": null
            },
            "model": null,
            "tags": [],
            "serial": null,
            "used_size": 500095254528,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/blockdevices/171/"
        }
    ],
    "architecture": "amd64/generic",
    "domain": {
        "authoritative": true,
        "ttl": null,
        "is_default": true,
        "name": "insecure-it.local",
        "id": 0,
        "resource_record_count": 0,
        "resource_uri": "/MAAS/api/2.0/domains/0/"
    },
    "status": 6,
    "current_installation_result_id": 246,
    "interface_set": [
        {
            "mac_address": "0c:c4:7a:6b:1b:ea",
            "type": "physical",
            "link_connected": true,
            "enabled": true,
            "product": "I350 Gigabit Network Connection",
            "effective_mtu": 1500,
            "numa_node": 0,
            "children": [
                "br-eno1"
            ],
            "discovered": null,
            "sriov_max_vf": 7,
            "links": [],
            "interface_speed": 1000,
            "name": "eno1",
            "id": 419,
            "vlan": {
                "vid": 0,
                "mtu": 1500,
                "dhcp_on": true,
                "external_dhcp": null,
                "relay_vlan": null,
                "secondary_rack": null,
                "fabric_id": 0,
                "name": "untagged",
                "id": 1,
                "primary_rack": "p67brc",
                "space": "undefined",
                "fabric": "pxe-fabric",
                "resource_uri": "/MAAS/api/2.0/vlans/1/"
            },
            "parents": [],
            "firmware_version": "1.52.0",
            "params": {},
            "vendor": "Intel Corporation",
            "system_id": "4waapd",
            "tags": [
                "sriov"
            ],
            "link_speed": 1000,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/419/"
        },
        {
            "mac_address": "0c:c4:7a:6b:1b:eb",
            "type": "physical",
            "link_connected": true,
            "enabled": true,
            "product": "I350 Gigabit Network Connection",
            "effective_mtu": 1500,
            "numa_node": 0,
            "children": [
                "br-eno2"
            ],
            "discovered": null,
            "sriov_max_vf": 7,
            "links": [],
            "interface_speed": 1000,
            "name": "eno2",
            "id": 422,
            "vlan": {
                "vid": 0,
                "mtu": 1500,
                "dhcp_on": false,
                "external_dhcp": null,
                "relay_vlan": null,
                "secondary_rack": null,
                "fabric_id": 45,
                "name": "untagged",
                "id": 54,
                "primary_rack": null,
                "space": "undefined",
                "fabric": "iscsi-fabric",
                "resource_uri": "/MAAS/api/2.0/vlans/54/"
            },
            "parents": [],
            "firmware_version": "1.52.0",
            "params": {},
            "vendor": "Intel Corporation",
            "system_id": "4waapd",
            "tags": [
                "sriov"
            ],
            "link_speed": 1000,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/422/"
        },
        {
            "mac_address": "00:15:17:7d:b7:90",
            "type": "physical",
            "link_connected": true,
            "enabled": true,
            "product": "82571EB/82571GB Gigabit Ethernet Controller D0/D1 (copper applications)",
            "effective_mtu": 1500,
            "numa_node": 1,
            "children": [
                "vlan"
            ],
            "discovered": null,
            "sriov_max_vf": 0,
            "links": [],
            "interface_speed": 1000,
            "name": "enp133s0f0",
            "id": 424,
            "vlan": {
                "vid": 0,
                "mtu": 1500,
                "dhcp_on": false,
                "external_dhcp": null,
                "relay_vlan": null,
                "secondary_rack": null,
                "fabric_id": 5,
                "name": "untagged",
                "id": 10,
                "primary_rack": null,
                "space": "undefined",
                "fabric": "vlan-trunk-fabric",
                "resource_uri": "/MAAS/api/2.0/vlans/10/"
            },
            "parents": [],
            "firmware_version": "5.6-2",
            "params": {},
            "vendor": "Intel Corporation",
            "system_id": "4waapd",
            "tags": [],
            "link_speed": 1000,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/424/"
        },
        {
            "mac_address": "00:15:17:7d:b7:91",
            "type": "physical",
            "link_connected": true,
            "enabled": true,
            "product": "82571EB/82571GB Gigabit Ethernet Controller D0/D1 (copper applications)",
            "effective_mtu": 1500,
            "numa_node": 1,
            "children": [
                "vlan"
            ],
            "discovered": null,
            "sriov_max_vf": 0,
            "links": [],
            "interface_speed": 1000,
            "name": "enp133s0f1",
            "id": 426,
            "vlan": {
                "vid": 0,
                "mtu": 1500,
                "dhcp_on": false,
                "external_dhcp": null,
                "relay_vlan": null,
                "secondary_rack": null,
                "fabric_id": 5,
                "name": "untagged",
                "id": 10,
                "primary_rack": null,
                "space": "undefined",
                "fabric": "vlan-trunk-fabric",
                "resource_uri": "/MAAS/api/2.0/vlans/10/"
            },
            "parents": [],
            "firmware_version": "5.6-2",
            "params": {},
            "vendor": "Intel Corporation",
            "system_id": "4waapd",
            "tags": [],
            "link_speed": 1000,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/426/"
        },
        {
            "mac_address": "00:15:17:7d:b7:90",
            "type": "bond",
            "link_connected": false,
            "enabled": true,
            "product": null,
            "effective_mtu": 1500,
            "numa_node": null,
            "children": [
                "vlan.10",
                "vlan.20"
            ],
            "discovered": null,
            "sriov_max_vf": 0,
            "links": [
                {
                    "id": 1593,
                    "mode": "link_up"
                }
            ],
            "interface_speed": 0,
            "name": "vlan",
            "id": 431,
            "vlan": {
                "vid": 0,
                "mtu": 1500,
                "dhcp_on": false,
                "external_dhcp": null,
                "relay_vlan": null,
                "secondary_rack": null,
                "fabric_id": 5,
                "name": "untagged",
                "id": 10,
                "primary_rack": null,
                "space": "undefined",
                "fabric": "vlan-trunk-fabric",
                "resource_uri": "/MAAS/api/2.0/vlans/10/"
            },
            "parents": [
                "enp133s0f0",
                "enp133s0f1"
            ],
            "firmware_version": null,
            "params": {
                "bond_mode": "802.3ad",
                "bond_miimon": 1,
                "bond_updelay": 0,
                "bond_downdelay": 0,
                "bond_lacp_rate": "fast",
                "bond_num_grat_arp": 1,
                "bond_xmit_hash_policy": "layer2"
            },
            "vendor": null,
            "system_id": "4waapd",
            "tags": [],
            "link_speed": 0,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/431/"
        },
        {
            "mac_address": "00:15:17:7d:b7:90",
            "type": "vlan",
            "link_connected": false,
            "enabled": true,
            "product": null,
            "effective_mtu": 1500,
            "numa_node": null,
            "children": [],
            "discovered": null,
            "sriov_max_vf": 0,
            "links": [
                {
                    "id": 1594,
                    "mode": "link_up"
                }
            ],
            "interface_speed": 0,
            "name": "vlan.10",
            "id": 432,
            "vlan": {
                "vid": 10,
                "mtu": 1500,
                "dhcp_on": false,
                "external_dhcp": null,
                "relay_vlan": null,
                "secondary_rack": null,
                "fabric_id": 5,
                "name": "inet-vlan",
                "id": 12,
                "primary_rack": null,
                "space": "undefined",
                "fabric": "vlan-trunk-fabric",
                "resource_uri": "/MAAS/api/2.0/vlans/12/"
            },
            "parents": [
                "vlan"
            ],
            "firmware_version": null,
            "params": {},
            "vendor": null,
            "system_id": "4waapd",
            "tags": [],
            "link_speed": 0,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/432/"
        },
        {
            "mac_address": "00:15:17:7d:b7:90",
            "type": "vlan",
            "link_connected": false,
            "enabled": true,
            "product": null,
            "effective_mtu": 1500,
            "numa_node": null,
            "children": [],
            "discovered": null,
            "sriov_max_vf": 0,
            "links": [
                {
                    "id": 1595,
                    "mode": "link_up"
                }
            ],
            "interface_speed": 0,
            "name": "vlan.20",
            "id": 433,
            "vlan": {
                "vid": 20,
                "mtu": 1500,
                "dhcp_on": false,
                "external_dhcp": null,
                "relay_vlan": {
                    "vid": 0,
                    "mtu": 1500,
                    "dhcp_on": true,
                    "external_dhcp": null,
                    "relay_vlan": null,
                    "secondary_rack": null,
                    "fabric_id": 0,
                    "name": "untagged",
                    "id": 1,
                    "primary_rack": "p67brc",
                    "space": "undefined",
                    "fabric": "pxe-fabric",
                    "resource_uri": "/MAAS/api/2.0/vlans/1/"
                },
                "secondary_rack": null,
                "fabric_id": 5,
                "name": "server-vlan",
                "id": 11,
                "primary_rack": null,
                "space": "undefined",
                "fabric": "vlan-trunk-fabric",
                "resource_uri": "/MAAS/api/2.0/vlans/11/"
            },
            "parents": [
                "vlan"
            ],
            "firmware_version": null,
            "params": {},
            "vendor": null,
            "system_id": "4waapd",
            "tags": [],
            "link_speed": 0,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/433/"
        },
        {
            "mac_address": "0c:c4:7a:6b:1b:ea",
            "type": "bridge",
            "link_connected": true,
            "enabled": true,
            "product": null,
            "effective_mtu": 1500,
            "numa_node": null,
            "children": [],
            "discovered": null,
            "sriov_max_vf": 0,
            "links": [
                {
                    "id": 1562,
                    "mode": "static",
                    "ip_address": "10.1.30.235",
                    "subnet": {
                        "name": "default-pxe-subnet",
                        "description": "",
                        "vlan": {
                            "vid": 0,
                            "mtu": 1500,
                            "dhcp_on": true,
                            "external_dhcp": null,
                            "relay_vlan": null,
                            "secondary_rack": null,
                            "fabric_id": 0,
                            "name": "untagged",
                            "id": 1,
                            "primary_rack": "p67brc",
                            "space": "undefined",
                            "fabric": "pxe-fabric",
                            "resource_uri": "/MAAS/api/2.0/vlans/1/"
                        },
                        "cidr": "10.1.30.0/24",
                        "rdns_mode": 2,
                        "gateway_ip": "10.1.30.1",
                        "dns_servers": [
                            "10.1.30.10"
                        ],
                        "allow_dns": true,
                        "allow_proxy": true,
                        "active_discovery": true,
                        "managed": true,
                        "disabled_boot_architectures": [],
                        "id": 1,
                        "space": "undefined",
                        "resource_uri": "/MAAS/api/2.0/subnets/1/"
                    }
                }
            ],
            "interface_speed": 0,
            "name": "br-eno1",
            "id": 440,
            "vlan": {
                "vid": 0,
                "mtu": 1500,
                "dhcp_on": true,
                "external_dhcp": null,
                "relay_vlan": null,
                "secondary_rack": null,
                "fabric_id": 0,
                "name": "untagged",
                "id": 1,
                "primary_rack": "p67brc",
                "space": "undefined",
                "fabric": "pxe-fabric",
                "resource_uri": "/MAAS/api/2.0/vlans/1/"
            },
            "parents": [
                "eno1"
            ],
            "firmware_version": null,
            "params": {
                "bridge_fd": 15,
                "bridge_stp": false,
                "bridge_type": "standard"
            },
            "vendor": null,
            "system_id": "4waapd",
            "tags": [],
            "link_speed": 0,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/440/"
        },
        {
            "mac_address": "0c:c4:7a:6b:1b:eb",
            "type": "bridge",
            "link_connected": true,
            "enabled": true,
            "product": null,
            "effective_mtu": 1500,
            "numa_node": null,
            "children": [],
            "discovered": null,
            "sriov_max_vf": 0,
            "links": [
                {
                    "id": 1592,
                    "mode": "static",
                    "ip_address": "10.1.40.72",
                    "subnet": {
                        "name": "icsi-subnet",
                        "description": "",
                        "vlan": {
                            "vid": 0,
                            "mtu": 1500,
                            "dhcp_on": false,
                            "external_dhcp": null,
                            "relay_vlan": null,
                            "secondary_rack": null,
                            "fabric_id": 45,
                            "name": "untagged",
                            "id": 54,
                            "primary_rack": null,
                            "space": "undefined",
                            "fabric": "iscsi-fabric",
                            "resource_uri": "/MAAS/api/2.0/vlans/54/"
                        },
                        "cidr": "10.1.40.0/24",
                        "rdns_mode": 2,
                        "gateway_ip": null,
                        "dns_servers": [],
                        "allow_dns": true,
                        "allow_proxy": true,
                        "active_discovery": false,
                        "managed": true,
                        "disabled_boot_architectures": [],
                        "id": 23,
                        "space": "undefined",
                        "resource_uri": "/MAAS/api/2.0/subnets/23/"
                    }
                }
            ],
            "interface_speed": 0,
            "name": "br-eno2",
            "id": 441,
            "vlan": {
                "vid": 0,
                "mtu": 1500,
                "dhcp_on": false,
                "external_dhcp": null,
                "relay_vlan": null,
                "secondary_rack": null,
                "fabric_id": 45,
                "name": "untagged",
                "id": 54,
                "primary_rack": null,
                "space": "undefined",
                "fabric": "iscsi-fabric",
                "resource_uri": "/MAAS/api/2.0/vlans/54/"
            },
            "parents": [
                "eno2"
            ],
            "firmware_version": null,
            "params": {
                "bridge_fd": 15,
                "bridge_stp": false,
                "bridge_type": "standard"
            },
            "vendor": null,
            "system_id": "4waapd",
            "tags": [],
            "link_speed": 0,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/441/"
        },
        {
            "mac_address": "00:16:3e:6e:1d:66",
            "type": "bridge",
            "link_connected": true,
            "enabled": true,
            "product": null,
            "effective_mtu": 1500,
            "numa_node": null,
            "children": [],
            "discovered": null,
            "sriov_max_vf": 0,
            "links": [
                {
                    "id": 1590,
                    "mode": "static",
                    "ip_address": "10.195.49.1",
                    "subnet": {
                        "name": "10.195.49.0/24",
                        "description": "",
                        "vlan": {
                            "vid": 0,
                            "mtu": 1500,
                            "dhcp_on": false,
                            "external_dhcp": null,
                            "relay_vlan": null,
                            "secondary_rack": null,
                            "fabric_id": 123,
                            "name": "untagged",
                            "id": 132,
                            "primary_rack": null,
                            "space": "undefined",
                            "fabric": "fabric-123",
                            "resource_uri": "/MAAS/api/2.0/vlans/132/"
                        },
                        "cidr": "10.195.49.0/24",
                        "rdns_mode": 2,
                        "gateway_ip": null,
                        "dns_servers": [],
                        "allow_dns": true,
                        "allow_proxy": true,
                        "active_discovery": false,
                        "managed": true,
                        "disabled_boot_architectures": [],
                        "id": 56,
                        "space": "undefined",
                        "resource_uri": "/MAAS/api/2.0/subnets/56/"
                    }
                },
                {
                    "id": 1591,
                    "mode": "static",
                    "ip_address": "fd42:6f86:98e4:a1ce::1",
                    "subnet": {
                        "name": "fd42:6f86:98e4:a1ce::/64",
                        "description": "",
                        "vlan": {
                            "vid": 0,
                            "mtu": 1500,
                            "dhcp_on": false,
                            "external_dhcp": null,
                            "relay_vlan": null,
                            "secondary_rack": null,
                            "fabric_id": 123,
                            "name": "untagged",
                            "id": 132,
                            "primary_rack": null,
                            "space": "undefined",
                            "fabric": "fabric-123",
                            "resource_uri": "/MAAS/api/2.0/vlans/132/"
                        },
                        "cidr": "fd42:6f86:98e4:a1ce::/64",
                        "rdns_mode": 2,
                        "gateway_ip": null,
                        "dns_servers": [],
                        "allow_dns": true,
                        "allow_proxy": true,
                        "active_discovery": false,
                        "managed": true,
                        "disabled_boot_architectures": [],
                        "id": 57,
                        "space": "undefined",
                        "resource_uri": "/MAAS/api/2.0/subnets/57/"
                    }
                }
            ],
            "interface_speed": 0,
            "name": "lxdbr0",
            "id": 446,
            "vlan": {
                "vid": 0,
                "mtu": 1500,
                "dhcp_on": false,
                "external_dhcp": null,
                "relay_vlan": null,
                "secondary_rack": null,
                "fabric_id": 123,
                "name": "untagged",
                "id": 132,
                "primary_rack": null,
                "space": "undefined",
                "fabric": "fabric-123",
                "resource_uri": "/MAAS/api/2.0/vlans/132/"
            },
            "parents": [],
            "firmware_version": null,
            "params": {},
            "vendor": null,
            "system_id": "4waapd",
            "tags": [],
            "link_speed": 0,
            "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/446/"
        }
    ],
    "current_commissioning_result_id": 240,
    "storage_test_status_name": "Passed",
    "node_type": 0,
    "virtualmachine_id": null,
    "disable_ipv4": false,
    "interface_test_status": -1,
    "bios_boot_method": "pxe",
    "other_test_status_name": "Unknown",
    "address_ttl": null,
    "next_sync": null,
    "owner_data": {},
    "min_hwe_kernel": "",
    "error_description": "",
    "sync_interval": null,
    "distro_series": "jammy",
    "pool": {
        "name": "default",
        "description": "Default pool",
        "id": 0,
        "resource_uri": "/MAAS/api/2.0/resourcepool/0/"
    },
    "cpu_count": 24,
    "netboot": false,
    "owner": "arozar",
    "testing_status_name": "Passed",
    "raids": [],
    "boot_interface": {
        "mac_address": "0c:c4:7a:6b:1b:ea",
        "type": "physical",
        "link_connected": true,
        "enabled": true,
        "product": "I350 Gigabit Network Connection",
        "effective_mtu": 1500,
        "numa_node": 0,
        "children": [
            "br-eno1"
        ],
        "discovered": null,
        "sriov_max_vf": 7,
        "links": [],
        "interface_speed": 1000,
        "name": "eno1",
        "id": 419,
        "vlan": {
            "vid": 0,
            "mtu": 1500,
            "dhcp_on": true,
            "external_dhcp": null,
            "relay_vlan": null,
            "secondary_rack": null,
            "fabric_id": 0,
            "name": "untagged",
            "id": 1,
            "primary_rack": "p67brc",
            "space": "undefined",
            "fabric": "pxe-fabric",
            "resource_uri": "/MAAS/api/2.0/vlans/1/"
        },
        "parents": [],
        "firmware_version": "1.52.0",
        "params": {},
        "vendor": "Intel Corporation",
        "system_id": "4waapd",
        "tags": [
            "sriov"
        ],
        "link_speed": 1000,
        "resource_uri": "/MAAS/api/2.0/nodes/4waapd/interfaces/419/"
    },
    "commissioning_status": 2,
    "boot_disk": {
        "firmware_version": "3B6Q",
        "storage_pool": null,
        "available_size": 0,
        "type": "physical",
        "partition_table_type": "GPT",
        "id_path": "/dev/disk/by-id/wwn-0x5002538d4228716d",
        "path": "/dev/disk/by-dname/sda",
        "numa_node": 0,
        "partitions": [
            {
                "uuid": "96d0d99f-c71a-4ab4-ba52-a4c518a3ca2c",
                "size": 500099448832,
                "bootable": false,
                "tags": [],
                "filesystem": {
                    "fstype": "lvm-pv",
                    "label": null,
                    "uuid": "286efe37-22b5-491d-b6e5-d15350caef50",
                    "mount_point": null,
                    "mount_options": null
                },
                "id": 113,
                "type": "partition",
                "used_for": "LVM volume for vgroot",
                "system_id": "4waapd",
                "path": "/dev/disk/by-dname/sda-part2",
                "device_id": 166,
                "resource_uri": "/MAAS/api/2.0/nodes/4waapd/blockdevices/166/partition/113"
            }
        ],
        "used_for": "GPT partitioned with 1 partition",
        "size": 500107862016,
        "name": "sda",
        "id": 166,
        "block_size": 512,
        "system_id": "4waapd",
        "uuid": null,
        "filesystem": null,
        "model": "Samsung SSD 850",
        "tags": [
            "ssd"
        ],
        "serial": "S3PTNB0J801776B",
        "used_size": 500105740288,
        "resource_uri": "/MAAS/api/2.0/nodes/4waapd/blockdevices/166/"
    },
    "memory_test_status": -1,
    "cpu_test_status_name": "Unknown",
    "system_id": "4waapd",
    "bcaches": [],
    "ephemeral_deploy": false,
    "special_filesystems": [],
    "description": "",
    "cpu_speed": 2600,
    "cache_sets": [],
    "numanode_set": [
        {
            "index": 0,
            "memory": 65536,
            "cores": [
                0,
                12,
                1,
                13,
                14,
                2,
                15,
                3,
                16,
                4,
                17,
                5
            ],
            "hugepages_set": [
                {
                    "page_size": 2097152,
                    "total": 0
                }
            ]
        },
        {
            "index": 1,
            "memory": 65536,
            "cores": [
                18,
                6,
                19,
                7,
                20,
                8,
                21,
                9,
                10,
                22,
                11,
                23
            ],
            "hugepages_set": [
                {
                    "page_size": 2097152,
                    "total": 0
                }
            ]
        }
    ],
    "hardware_info": {
        "system_vendor": "Supermicro",
        "system_product": "SYS-6017R-TDLR-BK0-LC019",
        "system_family": "To be filled by O.E.M.",
        "system_version": "Unknown",
        "system_sku": "To be filled by O.E.M.",
        "system_serial": "S15792125801102",
        "cpu_model": "Intel(R) Xeon(R) CPU E5-2630 v2",
        "mainboard_vendor": "Supermicro",
        "mainboard_product": "X9DRD-iF",
        "mainboard_serial": "NM157S001871",
        "mainboard_version": "REV:1.10",
        "mainboard_firmware_vendor": "American Megatrends Inc.",
        "mainboard_firmware_date": "09/10/2018",
        "mainboard_firmware_version": "3.3",
        "chassis_vendor": "Supermicro",
        "chassis_type": "Other",
        "chassis_serial": "C8130LE04N90406",
        "chassis_version": "Unknown"
    },
    "hwe_kernel": "ga-22.04",
    "resource_uri": "/MAAS/api/2.0/machines/4waapd/"
}
4

Looks like my issue was that the MAAS server did not have an interface on the server vlan I was trying to deploy a VM on.

Thanks @anton5mith !

5

This topic was automatically closed 2 days after the last reply. New replies are no longer allowed.
